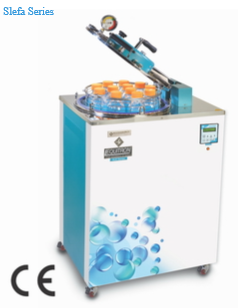

Vertical AUTOCLAVE – SLEFA Series (Fully Automatic)
Equitron SLEFA Series Fully Automatic Autoclaves are similar to FA Autoclaves, with a number of additional features. At the heart of SLE series is a secure microprocessor controller which provides high control accuracy along with user level flexibility for sterilizing various types of loads efficiently. Every single Autoclave chamber is hydrostatically tested to 1.5 times its operating pressure. Inspection as per set standards are carried out by qualified engineers at the raw material inward stage, mid process stage and during final tests and calibrations.
- Unique single lever lock for lid with single hand opening.
- Microprocessor Based Control ensures repeatability & a high accuracy.
- Conformance to National & International Standards.
- Internal Chamber and lid along with all wetted parts fabricated from Stainless Steel.
- Single lever pronged closure system (Patent under progress) with patented Silicone Gasket (registered design No. 208774.)
- External vertical panels of MS duly heat cured epoxy coated.
- Easy lift and closing of the lid by assisted support.
- Castors for ease of movement.
- Flexible sensor enables in-situ control and monitoring of cycles.
- Pressure interlock on door.
- Audio & Visual alarms for sensor open and low water level.
- MCB for electrical safety.
- Independent over temperature safety cut out.
- Documenting options: Optional extra.
- Validation: Optional extra (Includes IQ, OQ, PQ, Calibration Certificates, etc), as per requirement.
| Working Chamber Size | SS Carrier | Heater |
| Operating Pressure: 15psi. Sterilisation Temperature: 121°C | ||
| 30x50cm (12×20″) / 35 Ltr | 1 of 25x45cm | 1.80 kW |
| 35x55cm (14×22″) / 53 Ltr | 1 of 30x50cm | 2.25 kW |
| 40x60cm (18×28″) / 75 Ltr | 1 of 35x55cm | 3.00 kW |
| 45x71cm (18×28″) / 113 Ltr | 2 of 40x30cm | 3.50 kW |
| 55x76cm (22×30″) / 180 Ltr | 2 of 50x35cm | 5.00 kW |
| Operating Pressure: 30psi. Sterilisation Temperature: 134°C | ||
| 30x50cm (12×20″) / 35 Ltr | 1 of 25x45cm | 3.00 kW |
| 35x55cm (14×22″) / 53 Ltr | 1 of 30x50cm | 3.00 kW |

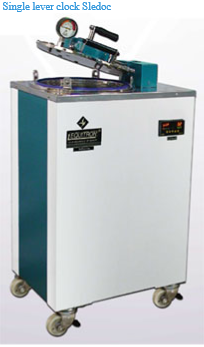

Vertical AUTOCLAVE – SLEDOC Series
Equitron SLEDOC series Autoclaves are ideal for Labs where documenting the sterilisation cycle is mandatory.
CE Certified.
These units provide real time printing of three temperature sensors along with F0 summation, plus pressure channel.
With a Graphic Programmable Logic Controller, exceptional temperature management and progressive notifications, the SLEDOC will stand scutiny of the toughest of autditors.
Printing in smart tabular format, with date, time and batch number.
Prints to external Epson LX-300+II DMP (not included in supply).
Manufacturing as per ASME standard.
| Working Chamber Size | SS Carrier | Heater |
| 40x60cm (18×28″) / 75 Ltr | 1 of 35x55cm | 3.0 kW |
| 45x71cm (18×28″) / 113 Ltr | 2 of 40x30cm | 3.5 kW |
| 55x76cm (22×30″) / 180 Ltr | 2 of 50x35cm | 5.0 kW |
| 40x60cm (18×28″) / 75 Ltr | 2 of 50x35cm | 3.0 kW |

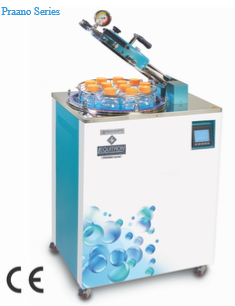

Vertical AUTOCLAVE – Praano Series
At the heart of the PRAANO series is a Touchscreen PLC which provides high control accuracy along with user level flexibility for sterilizing various types of loads efficiently.
- Inbuilt documenting feature.
- Online documenting of 4 temperature + 1 pressure channel + cumulative F calculations of 1 temperature 0 channel to external DMP (optional) or PC (optional).
- Built in recipes.
- Temperature controlling on all 4 temperature channels.
- Password protection upto 3 levels.
- Fail safe program for power failures.
- Unique single lever lock for lid with single hand opening.
- Advanced customised PLC based control ensures repeatability and high accuracy.
- Exclusive built in features like automatic water fill, multiple temperature sensors with control on all, power failure restore, PC connectivity & many more.
- Conformance to National & International Standards.
- User settable alpha numeric batch number with operator name.
- Service & Calibration reminders.
- Operating Pressure: 15psi. Sterilisation Temperature: 121°C
Options: (To be confirmed at time of placing order)
- Air Ballast with Filter (Post Sterilisation – Support pressure system for liquid sterilization especially in sealed pouches. (Cat#: AB).
- Positive Pulsing – Free steaming (positive pulsing / grade heating) for deeper penetration of porous loads and for reducing lag times in media in flasks. (Cat#: PP).
- Drain Cooling – Drain (exhaust) cooling for protecting the drain utilities from the scorching steam exhaust. (Cat#: DC).
| Working Chamber Size | SS Carrier | Heater |
| 40x60cm (18×28″) / 75 Ltr | 1 of 35x55cm | 3.00 kW |
| 45x71cm (18×28″) / 113 Ltr | 2 of 40x30cm | 3.50 kW |
| 55x76cm (22×30″) / 180 Ltr | 2 of 50x35cm | 5.00 kW |
AUTOCLAVE – Single Lever Lock – Vacuum Series
A high end Autoclave, with a Single Lever Lock for the Lid, a secure Microprocessor Controller and Vacuum. Fully Automatic operation. Complete safety features. User friendly programmable Controller with options of pre-vacuum, free-steaming and post vacuum, besides time & temperature, makes it equivalent to a high end horizontal autoclave.
The unit is controlled by a Programmable Logic Controller (PLC) with touch screen graphic display which provides for a flexible user friendly interface and accurate control.
- All the critical parameters including set parameters & alarms are displayed on the touch screen. The PLC controls and monitors each and every parameter which provides higher reliability.
- User customisable cycle with flexibility of setting following parameters:
- Number of negative pulses
- Number of positive pulses
- Sterlisation temperature
- Sterilisation hold time
- Vacuum drying
AUTOCLAVE – Single Lever Lock – SLEDD Series
The SLEDD range, like all Equitron Autoclaves, is designed for ease of use and dependability and is manufactured under strict supervision. Each & every chamber is hydrostatically tested as per standards. Rigorous inspection standards and traceable calibration reports ensure that the SLEDD range will deliver dependable performance.
- Unique single lever lock for lid with single hand opening.
- Temperature Range up to 134°C for high speed sterilisation.
- Efficient post sterilisation drying.
- External Bottle for draining water & condensing steam.
- Microprocessor Based Control ensures repeatability & a high accuracy.
- Conformance to National & International Standards.
- Internal Chamber and lid along with all wetted parts fabricated from Stainless Steel.
- Single lever pronged closure system with a specially designed Silicone Gasket.
- Easy lift and closing of the lid by assisted support.
- Castors for ease of movement.
- Easy access to all critical components due to its modular panel design.
- At the heart of SLEDD series is a secure microprocessor controller which provides higher control accuracy along with user level flexibility for sterilizing various types of loads efficiently. A second timer for drying upto 99 minutes is also fitted.
- Dual LED display in main controller for temperature in 1°C resolution & time in minutes.
- Digital Timer upto 99 minutes for drying.
- Every single Autoclave chamber is hydrostatically tested to 1.5 times its operating pressure. Inspection as per set standards are carried out by qualified engineers at the raw material inward stage, mid process stage and during final tests and calibrations.
- Low water detection.
- Spring loaded safety valve for over pressure.
- Pressure interlock on door.
- Independent self resetting Thermal safety cutout.
- MCB for electrical safety.
| Usable Size | Power Supply | Dressing Drum | SS Carriers |
| 35x68cm (65Ltr) | 2.7 kW | 33x28cm -2nos | 30×63 -1no. |
| 40x90cm (90Ltr) | 3.5 kW | 38x30cm -3nos | 35×40 -2nos. |
