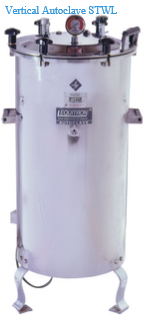

Vertical AUTOCLAVE – Standard (STWL)
With Low water level alarm and cut off
A sturdy and tension free Autoclave which can safely be operated repeatedly even in remote places. Ideal for Microbiology, Tissue Culture, etc.
Inside and outside chamber and reservoir are fully stainless steel. Flange, fly screw, cross pin are also fully stainless steel.
All internal joints are argon welded. Finely polished, crevice-free internals.
Hydraulically Die-pressed lid in Stainless Steel
Handy-raise device for lid – safe and user friendly – on #7441 and #7451. Manual lifting on others.
Lid fitted with Pressure gauge, safety valve, extra safety valve, manual exhaust valve and vacuum breaker cum purge valve.
Stainless Steel wire mesh carrier and heater cover stand.
Moulded rubber/neoprene gasket.
Drain valve at bottom.
Industrial grade energy efficient ring type heater, custom made for Equitron Autoclaves, thus reducing power bills by 16 to 40%.
Automatic Purging for efficient sterilization.
Equipped with float switch and electronic circuit for Low water level alarm and cut off.
Supplied with traceable certificate for Pressure Gauge.
Operating Pressure: 15 psi. Sterilisation Temperature: 121°C.
Documenting Options: None.
| Working Chamber Size Dia x Depth / Ltr |
SS Carrier Dia x Depth |
Heater |
| 30x50cm (12×20″) / 35 Ltr | 1 of 25x45cm | 1.80 kW |
| 35x55cm (14×22″) / 53 Ltr | 1 of 30x50cm | 2.25 kW |
| 40x60cm (18×28″) / 75 Ltr | 1 of 35x55cm | 3.00 kW |
| 45x71cm (18×28″) / 113 Ltr | 2 of 40x30cm | 3.50 kW |
| 55x76cm (22×30″) / 180 Ltr | 2 of 50x35cm | 5.00 kW |

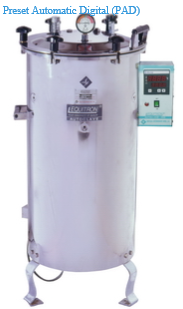

Vertical AUTOCLAVE – Preset Automatic Digital (PAD)
The above STandard Autoclaves are also available with a DIGITAL microprocessor based controller.
- Time and Temperature factory preset at 121°C and 20 minutes (7 minutes).
- Bright dual LED display simultaneously displays process and set temperatures – visible even from a distance.
- Pt100 sensor, enables precise in load monitoring.
- Low water level alarm and cut off.
- Sensor open alarm
- End of cycle buzzer.
- Construction details are same as STWL.
- Supplied with traceable certificate for Pressure Gauge and Temperature Indicator.
Documenting Options: None.
| Working Chamber Size Dia x Depth / Ltr |
SS Carrier Dia x Depth |
Heater |
| 30x50cm (12×20″) / 35 Ltr | 1 of 25x45cm | 1.80 kW |
| 35x55cm (14×22″) / 53 Ltr | 1 of 30x50cm | 2.25 kW |
| 40x60cm (18×28″) / 75 Ltr | 1 of 35x55cm | 3.00 kW |
| 45x71cm (18×28″) / 113 Ltr | 2 of 40x30cm | 3.50 kW |
| 55x76cm (22×30″) / 180 Ltr | 2 of 50x35cm | 5.00 kW |

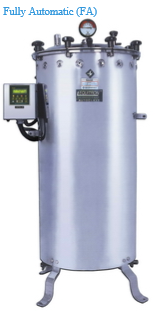

Vertical AUTOCLAVE – Fully Automatic (FA)
Equitron Fully Automatic Autoclaves (FA) are an industry standard, and used in almost all Pharma companies, Biotech, Research, etc. These Autoclaves are years ahead of any other brand in terms of performance, quality and features.
Microprocessor based controller with Time and Temperature programmable by user.
A backlit alphanumeric two line 32 characters LCD display, displays all information including process and set values at a glance, eliminating guesswork.
Operating and Display range up to 122°C (135°C for 30psi models) in 0.1°C resolution.
Flexible Pt100 sensor, enables precise in load monitoring.
Low water level alarm and cut off.
Sensor open alarm
End of cycle buzzer and auto reset.
Miniature circuit breaker for On/Off plus safety.
Construction details are same as above.
Supplied with traceable certificate for Pressure Gauge and Temperature Indicator.
Documenting options: Optional extra.
Validation: Optional extra (Includes IQ, OQ, PQ, Calibration Certificates, etc), as per requirement.
| Working Chamber Size Dia x Depth / Ltr |
SS Carrier Dia x Depth |
Heater |
| Operating Pressure: 15psi. Sterilisation Temperature: 121°C | ||
| 30x50cm (12×20″) / 35 Ltr | 1 of 25x45cm | 1.80 kW |
| 35x55cm (14×22″) / 53 Ltr | 1 of 30x50cm | 2.25 kW |
| 40x60cm (18×28″) / 75 Ltr | 1 of 35x55cm | 3.00 kW |
| 45x71cm (18×28″) / 113 Ltr | 2 of 40x30cm | 3.50 kW |
| 55x76cm (22×30″) / 180 Ltr | 2 of 50x35cm | 5.00 kW |
| Operating Pressure: 30psi. Sterilisation Temperature: 134°C | ||
| 30x50cm (12×20″) / 35 Ltr | 1 of 25x45cm | 3.00 kW |
| 35x55cm (14×22″) / 53 Ltr | 1 of 30x50cm | 3.00 kW |
